Trigonometry is a branch of mathematics that means "measurement of, with and by means of triangles".

Astronomers as early as 150 BC developed the study of trigonometry.  By about 1500 AD the trig. ratios (sine, cosine and tangent) were established.  Once again, right-angled triangles, as in Pythagoras' Theorem,  are important when making calculations with the trig ratios.

Before we discuss the definition of the trig ratios it is important to understand how angles are measured.

You are probably used to expressing angles in degrees, but it is also possible to express angles in radians.



RADIANS

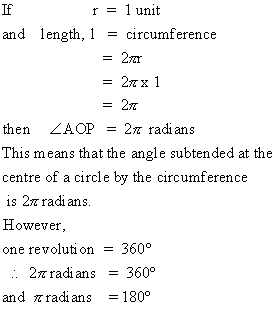

A radian is the angle made when the radius of a circle represents an arc on its perimeter.

OR

One radian is the measure of the angle subtended at the centre of a circle by an arc equal in length to the radius of the circle.













Usually, 1 radian is written as 1c.

















































1 radian = 57.30
Radians are often used instead of degrees in advanced calculations.
Your calculator can work in radians by changing the mode of operation from DEG to RAD.

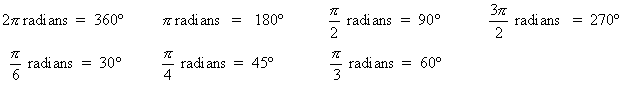

IMPORTANT CONVERSIONS



Return to Top of Page















Examples

Changing from radians to degrees.





          Changing from degrees to radians.

          Convert 240 to radians.






Return to Top of Page













Have a Go

Problem 1

Change 102 to radians.

See Solution





Problem 2

See Solution



Return to Top of Page



Practice Questions

Question 1

Express the following angles in radian measure:
15,
135 15'

Question 2

Convert the following radian measure to degree:
15.86 radians,
0.076 radians.





Question 3

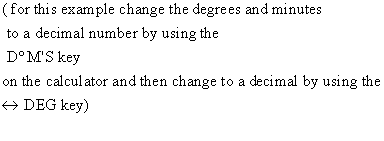

Use your calculator to change these degrees and minutes to decimal degrees.
(a)   26 6'
(b)  83 16'



Question 4



                         Return to Top of Page













Solution 1
Change 102 to radians.

back to Have a Go



Solution 2



back to Have a Go
